IS SERIES
FEATURES
- Extremely compact enclosures
- Accurately sound reproduction
- Fast and secure mounting arrangement
- 100V transformers included (15/30 W or by-pass position)
- Available in black or white colours
APPLICATIONS
- Multimedia Facilities, Presentation Suites Boardrooms
- Lecture Halls Theme Venues
- Music-Restaurants, Dance&dinner clubs
- Show-rooms Shopping malls
- Fitness & wellness centres
DESCRIPTION

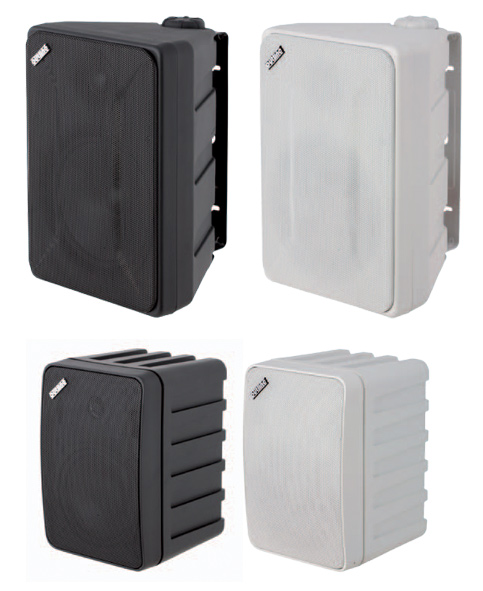

The IS5T and IS6T are high fidelity, full range two-way loudspeakers mounted in a plastic sealed box and designed for use in wide variety in room installation. IS5T features a 5.25" (13.3 cm) LF cone driver with a Neodymium HF section while IS6T features a 6.5" (16.5 cm) LF cone driver with a Neodymium HF section.
They both employs an optimized passive crossover with 1st order acoustic slopes to integrate both the on-axis and off-axis (power response) characteristics of the HF and LF sections. A 100V transformer is integrated within both the cabinets and a multitap switch for low impedance use enables the users to choose 15W, 30W or by-pass position.
SPECIFICATII TEHNICE
| FREQUENCY RESPONSE | ||
| IS5T | (±5 dB) 65 Hz ÷ 20 kHz | |
| IS6T | (±5 dB) 110 Hz ÷ 20 kHz | |
| IMPEDANCE (Ω) | IS5T | IS6T |
| 6 | 8 | |
| MAX SENSITIVITY (dBSPL 1W 1m) | IS5T | IS6T |
| 90 | 90 | |
| POWER - WATTS MAX | IS5T | IS6T |
| 50 | 100 | |
| MAX SPL @ 1 m (calculated) | IS5T | IS6T |
| 110 Peak | 113 Peak | |
| COMPONENTS AND LOADING | ||
| IS5T | Low 5.25" cone driver High 10 mm Neodymium transducer |
|
| IS6T | Low 6.5" cone driver High 19 mm Neodymium transducer |
|
| ACCESSORIES INCLUDED | Bracket, 100V transformer (15/30W/ by- pass) | |
| WEIGHT | IS5T | IS6T |
| 3.4 kg | 4.2 kg | |
| DIMENSIONS | IS5T | IS6T |
| H x W x D | 23.5 x 16 x 17.5 cm | 28 x 19 x 17 cm |
