BUTTERFLY C.D.H. 483 High-Pack

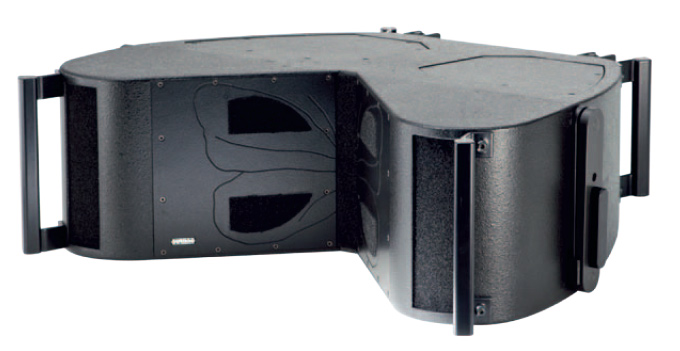

The C.D.H. 483 Hi-Pack is the Butterfly system's element for mid-low, mid and high frequency reproduction. Weighing just 34 kg. the cabinet has an unmistakable shape which brings to mind the butterfly from which it takes its name, thanks to the triangular opening in the upper and lower "sides". This original design solution favours the optimum coupling of array elements up to the highest frequencies, keeping the distance between the sources as short as possible and at the same time providing them with a continuous loading 'baffle'.
The high frequency section of the Butterfly system is equipped with a 3" (1.41" throat) compression driver coupled with a D.P.R.W.G. (Double Parabolic Reflective Wave Guide) device geometrically based entirely on precise mathematic calculations to take a circular planar (flat) wavefront emitted by the source at its input (e.g. that of a compression driver) and transforming it into a rectangular planar wavefront at its output, keeping signal paths identical from every emission point of the source. The rectangular planar wavefront thus obtained can be loaded by an appropriate horn or waveguide to ensure the necessary coverage.
Four high-efficiency 8" mid woofers: two band-pass loaded (110 ÷ 400Hz) and two reflex high-pass (110 ÷1250Hz) loaded by the sides of a waveguide with a 90° dispersion angle are connected in parallel without any type of passive crossover, so can both be powered using one amplifier.
BUILT-IN HARDWARE

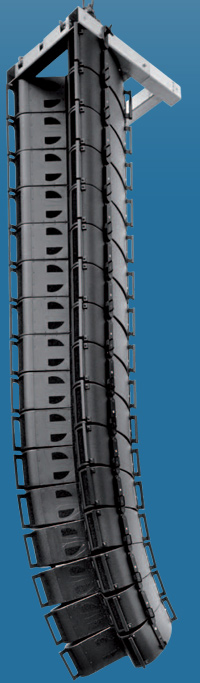

Butterfly Hi-Pack is equipped with built-in flying hardware enabling to adjust the angle between the elements with minimum increments of as little as 0.25 degrees. Its hardware has been certified according to the strictest international norms and allows for flying an array of up to 32 C.D.H. 483 Hi-Packs.
OPENARRAY 3D SIMULATION SOFTWARE
OPENARRAY is the avant-garde control and 3D simulation software, written by Outline's R&D team. It's a three dimensional software program that can predict the results expected from either a live performance or an installation of a wide range of Outline products, including all the Line Arrays and subwoofers models as well Outline's most popular point source systems. The result is a 'tool' able to guide PA system engineers through correct set-up procedure from an acoustic and mechanical point of view while fully respecting safety norms.
OPENARRAY greatly facilitates installation, setting and aiming of Line Array elements: the risk of poor results is thus drastically reduced. The technology behind OPENARRAY is based on a GL platform and features incredibly fast rendering time from input of data to final design. OPENARRAY also has the ability to import DXF files, thus giving engineers a head start to final deployment of the intended system. This, and many other features, makes OPENARRAY one of the most exclusive product on the international scenario.
SPECIFICATII TEHNICE
FREQUENCY RESPONSE | (-10 dB) 80 Hz ÷ 18 kHz (±3 dB) 110 Hz ÷ 18 kHz |
|
AVERAGE DISPERSION | Horizontal: 90° Vertical Depending on array height and curvature |
|
IMPEDANCE (Ω) | Low/Mid 4 Ω (min. 3.5) High 8 Ω (min. 8.3) |
|
POWER - WATT AES | Cont. | Peak |
High-pass filtered Low/Mid | 800 | 3200 |
High | 120 | 480 |
MAX SPL @ 1 m (calculated) (Single Unit - full space) |
Cont. | Peak |
Low/Mid | 128.5 | 138.5 |
High | 131 | 141 |
MIN BOX ARRAY (4 UNITS) | Cont. | Peak |
Low/Mid | 140.6 | 150.6 |
High | 143 | 153 |
CONNECTORS | 2 x NL4 Speakon in parallel | |
Low/Mid | Pin 1+ pos ; Pin 1- neg | |
High | Pin 2+ pos ; Pin 2- neg | |
LOUDSPEAKERS AND LOADING | ||
Low | 2 x 8" NdFeB bandpass loaded woofers | |
Mid | 2 x 8" NdFeB partially horn-loaded mid woofers | |
High | 1 x 3" Diaphragm NdFeB, D.P.R.W.G. loaded compression driver | |
WEIGHT | Single unit | Shipping (2 units) |
KG | 34 | 75 |
DIMENSIONS | Single unit | Shipping (2 units) |
H x W x D | 24 x 75.2 x 60 cm | 59 x 81 x 73 cm |
ACCESORII
MAIN-FRAME | la cerere |
V 556 | |
V 568 | |
EXTENSION-FRAME (back or front extension frame) | la cerere |
V 552/553 | |
V 557 | |
FLIGHT CASE | |
F-CASE 483-2P: Flight-case housing 2 x C.D.H. 483 Hi-Pack units | la cerere |
F-CASE 483-3P: Flight-case housing 3 x C.D.H. 483 Hi-Pack units | la cerere |
F-CASE 1815-2P: Flight-case housing 2 x C.D.L. 1815 Low-Pack units | la cerere |
SPARES | |
V 530: A/B Rear SPLay connecting bar starting from 0° - step 0.5° | la cerere |
V 554: A/B Rear SPLay connecting bar starting from 0.25° - step 0.5° | la cerere |
V 531: Side connecting bar (between the elements) | la cerere |
V 556: Side frame connecting bar | la cerere |
V 568: Rear frame connecting bar | la cerere |
V 552/553: Special side cennecting bar with self-locking nuts and with two position screw pin anchor shackle for a steel pull-back rope | la cerere |
V 557: Extension frame connecting bar with screw pin anchor shackle for steel pull-back rope | la cerere |
AV 616: Adjustable support foot to slope B.fl y frame in stacked array mode | la cerere |
F-CASE 5 C x 8,5: Wheeled Flight-case with 5 drawers for the storage of the spares | la cerere |
MC MPU-OUT | la cerere |
BUTTERFLY 2 Rack U Main supply unit, 5 poles 32 A main socket, 3 by LK8 loudspeakers sockets for T SERIES power amplifiers complete wiring | |
LK MRU-OUT | la cerere |
BUTTERFLY 2 Rack U master INPUT box, 2 by LK 25 sockets, 8 + 6+6 XLR connectors, 12 Input XLR snake for T SERIES power amplifiers complete signal wiring | |
LK25FV/MV-2 | la cerere |
BUTTERFLY 2 mt. multicore cable with LK25FV/MV connectors to link two ampracks | |
SP2 LKI8-15 | la cerere |
BUTTERFLY 15 mt. loudspeaker power cable (8x4) with LKI 08R MVPD/2 speakon connectors. For Hi-pack and Lo-pack | |
SP2 LKI8-25 | la cerere |
BUTTERFLY 25 mt. loudspeaker power cable (8x4) with LKI 08R MVPD/2 speakon connectors For Hi-pack and Lo-pack | |
SP4 LKI8-11 | la cerere |
BUTTERFLY 10 mt. loudspeaker power cable (8x4) with LKI 08R MVPD/ 4 speakon connectors. For Subtech's wiring | |
SPK LKI 8-0,5 | la cerere |
BUTTERFLY 0,5 mt. loudspeaker power cable adapter with LKI 08 MVD/08R FVD connectors to match SP2 & SP4 cable to SPK LKI 8 - 20 extension cables | |
SPK LKI 8-20 | la cerere |
BUTTERFLY 20 mt. loudspeaker power extension cable (8x4) with LKI 08R MVPD/FVPD connectors to be matched to SPK LKI 8-0,5 cable ONLY |
|
SPK 4X2.5-0.7 | la cerere |
0,7 mt. NL4/ NL4 loudspeaker power cable (4 by 2.5mm) to link two Hi-pack or two Lo-pack loudspeakers |
