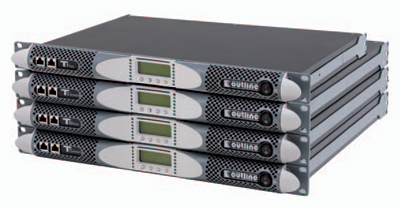

T Series Amplifiers
FEATURES
- Advanced switch-mode worldwide operating power supply technology for high performance and very compact size
- Power Factor Correction PFC for extremely low mains consumption and extremely wide mains operating range
- Variable speed fan for low noise
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- XLR female / 6.3mm Jack Neutrik style input connectors with link capability
- Built-in defeatable Clip limiters for each channel
- LCD matrix interactive display
- Digital gain-attenuator control
- User selectable maximum output power for each channel
- User selectable maximum mains current draw
- Comprehensive-user friendly front panel display menu
- Fully protected circuitry design including DC, infrasonic, high frequency, thermal overload and short circuit
- Temperature forecast with LCD traced historical behaviour
- Downloadable log file of functional fault events with time related trace
- Load impedance measurement / display for each channel
- Output power measurements / display for each channel
- Mains voltage and current measurements / display
- Defeatable gate selection for each channel
- Gain/sensitivity user selection capability
- Hardware monitor available for fast local diagnostic
- Fixed frequency switch-mode output stage for high grade sound accuracy
- Very compact size - all models only 1 Rack Unit for reduced rack cost and space
- Very light weight - all models only 12 kg (26 pounds) for easier racking and shipping
- Built-in Remote Control (RS 485 interface) for full diagnostic, operational setting and system monitoring
- Smart Card settings, parameters and upgrades functionality
- Lockable set-up by user selectable access key code
- DSP option capability
- Ethernet option capability
CONTINUOUS RATED OUTPUT POWER PER CHANNEL - EIAJ TEST (1% THD)
| |
Dual
2 Ω |
Dual
4 Ω |
Dual
8 Ω |
Bridge
4 Ω |
Bridge
8 Ω |
Bridge
16 Ω |
| T FIVE |
2800W |
2600W |
1400W |
- |
- |
- |
| T SEVEN |
3600W |
2500W |
1300W |
7200W |
5000W |
2600W |
| T NINE |
4800W |
3000W |
1500W |
9600W |
6000W |
3000W |
| T ELEVEN |
6000W |
4000W |
2000W |
12000W |
8000W |
4000W |
SPECIFICATII TEHNICE
| FREQUENCY RESPONSE (1W - 8 Ω) |
5 Hz ÷ 30 kHz |
| SLEW RATE |
> 50 V/μsec (input filter by-passed) |
| THD FROM 0.1 W TO FULL POWER |
< 0.5% |
| GAIN/ SENSITIVITY DB |
26 - 29 - 32 - 35 user selectable |
| MAXIMUM INPUT LEVEL |
+25 dBu |
| OPERATING TEMPERATURE |
0° C ÷ + 45° C |
| INPUT CONNECTORS |
2 x balanced to ground XRL female Combo jack 6.3 |
| OUTPUT CONNECTORS |
2 x Neutrik Speakon NL4MP (pins 1+ 2+ / 1- 2- paralleled) |
| MAINS POWER |
Universal switch-mode PSU, 95v ~ 265v AC, 50 ~ 60Hz |
| CONSUMPTION AVERAGE |
2300 VA (T Eleven @ 1/8 maximum output power) |
| WEIGHT |
12 kg / 8 kg for T Five |
| DIMENSIONS |
4.4 x 47.2 x 45.5 cm / 4.4 x 47.2 x 36 cm forT Five |
